Let's get started!

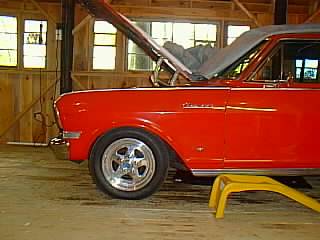

Wheel off, up on stands

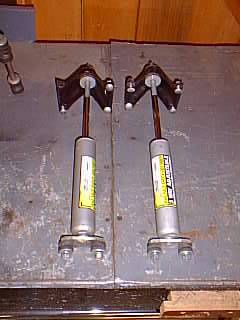

Shocks removed- you can leave the towers attached
Coil spring removed
Old spring on spring compressor

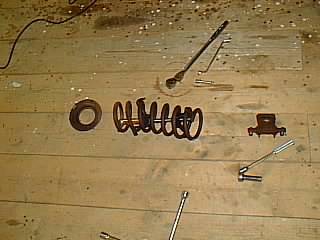

Spring, with upper and lower mounts

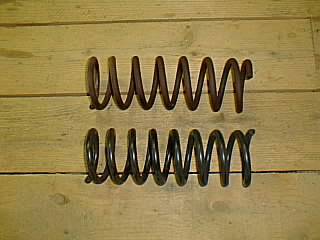

Old spring (top) and new spring
Upper balljoint unbolted from control arm

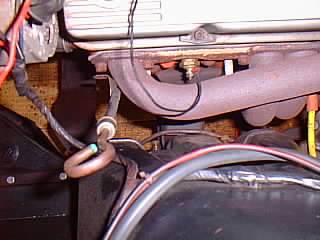

Nuts for the pivot shaft bolts are inside the shock towers

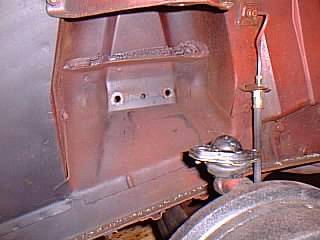

Upper control arm out!
Control arm out, with old solid aluminum racing bushings

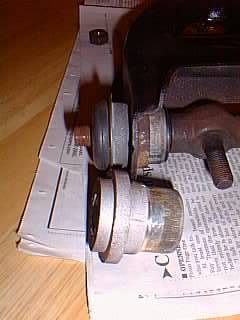

New bushing in, old bushing in foreground

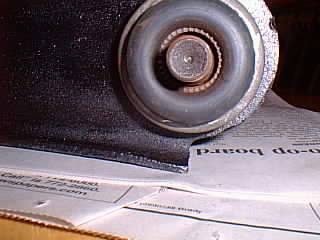

Note the serrations on the end of the inner tube that grip the bushing washer

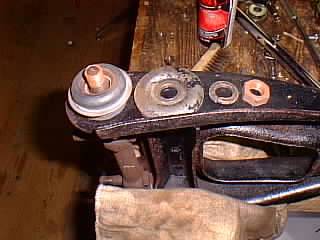

Bushing washer, lockwasher, and nut, ready to go on
A quick shot of paint, and good as new!

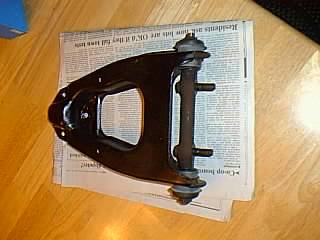

Ready to bolt in

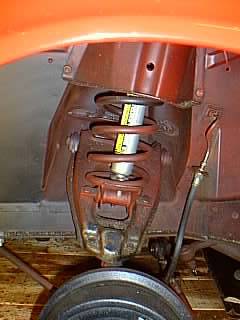

Pivot shaft and upper balljoint reattached, ready for springs
